Semiconductor wafer giant  - finished product warehouse

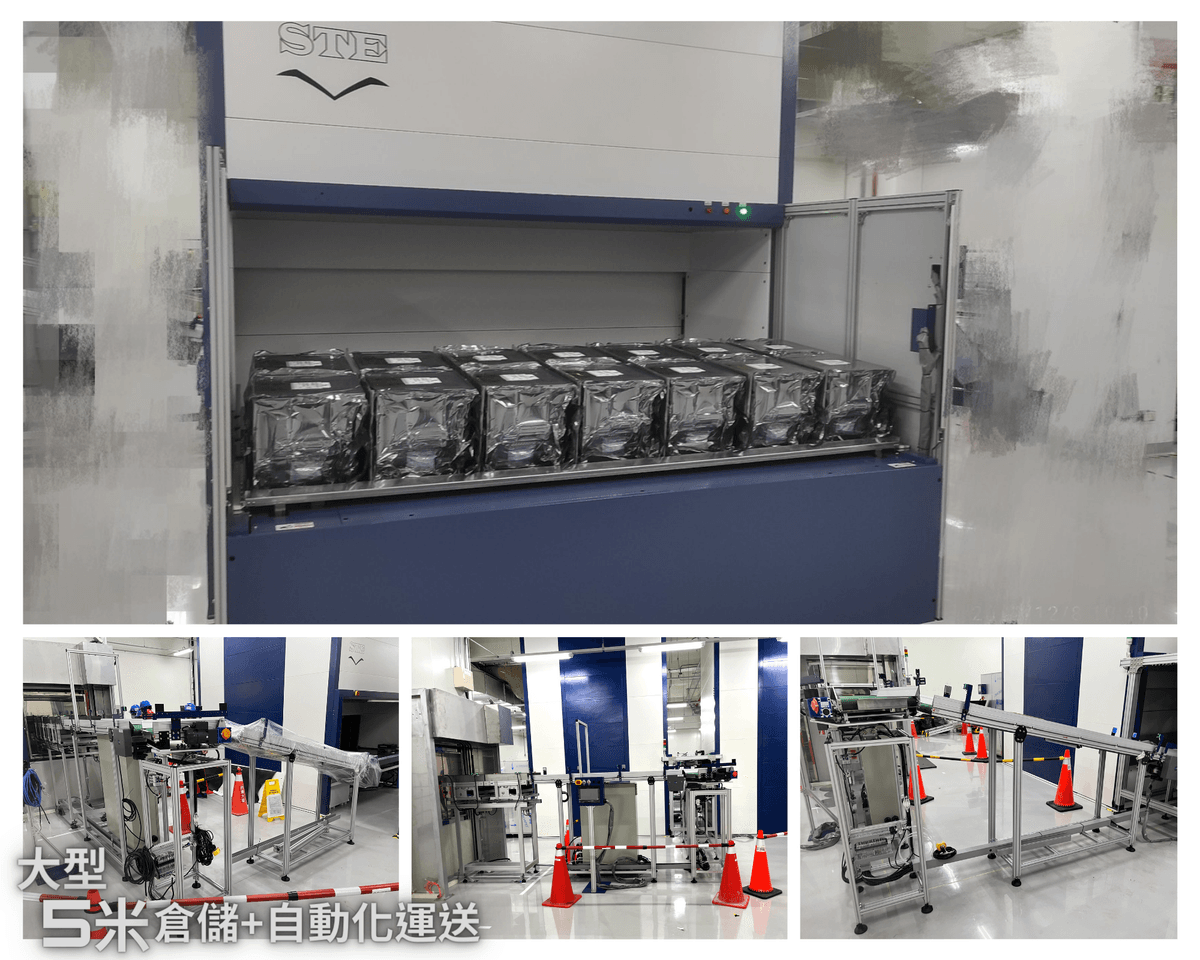

Large 5m automatic storage + Automated transport

As we all know, silicon wafers are the most important raw materials in the semiconductor production process

As the semiconductor industry progressed from the earliest 2, 4, 5, 6, 8 inches to 12 inches, the larger the wafer surface area, the higher the technical threshold for production would become, resulting in the increase of importance for wafer preservation

It is undoubtedly the best choice to use the intelligent storage characteristics of Apex as the storage management system of the vacuum packaged wafer box

What’s more, Apex has more than 20 years of automation experience. We increase the automatic flow of finished wafers into our warehouse to realize unmanned warehouse management.

Client demand

 Wafer recycling giant seeks night unmanned finished product warehouse solution

Goods to be stored

 12 inches wafer box

Storage condition

 Needs to be connected to the production line, can collect and sort after packaging of 12 "FOSB

Status before import

The client needs to design the finished product warehouse for the new factory, and the finished products produced at night needed to be collected manually

The finished product warehouse site is 5 meters tall, traditional shelves will waste vertical space, resulting low space utilization

If the traditional shelf is used, the material management can only be handled with manual assistance

Status after import:

24hr production process, the finished product warehouse is unmanned at night, adding outlet exit both in the front and at the back, and uses back-to-back storage to collect and manage materials

A conveyor belt is set up at the back of the two warehouses, and a manual inlet and outlet is set up in front of the

warehouse. The storage characteristics are used to separate operation of people from devices to ensure the safety of personnel

The packaged FOSB is sent to the rear of the warehouse by conveyor belt, and then the pusher mechanism is connected to allow the FOSB to enter the warehouse and sort smoothly

There is no need to manually identify the material. The system confirms the FOSB storage location through optical identification, then the warehouse automatically pulls the storage unit to connect the conveyor belt

The storage system makes full use of the height of the site, so that the storage space may develop upward and saves horizontal space

There is a warehouse management system within the warehouse, which can digitize material information to facilitate the connection of any digital system and equipment, which also helps field personnel greatly in material management
