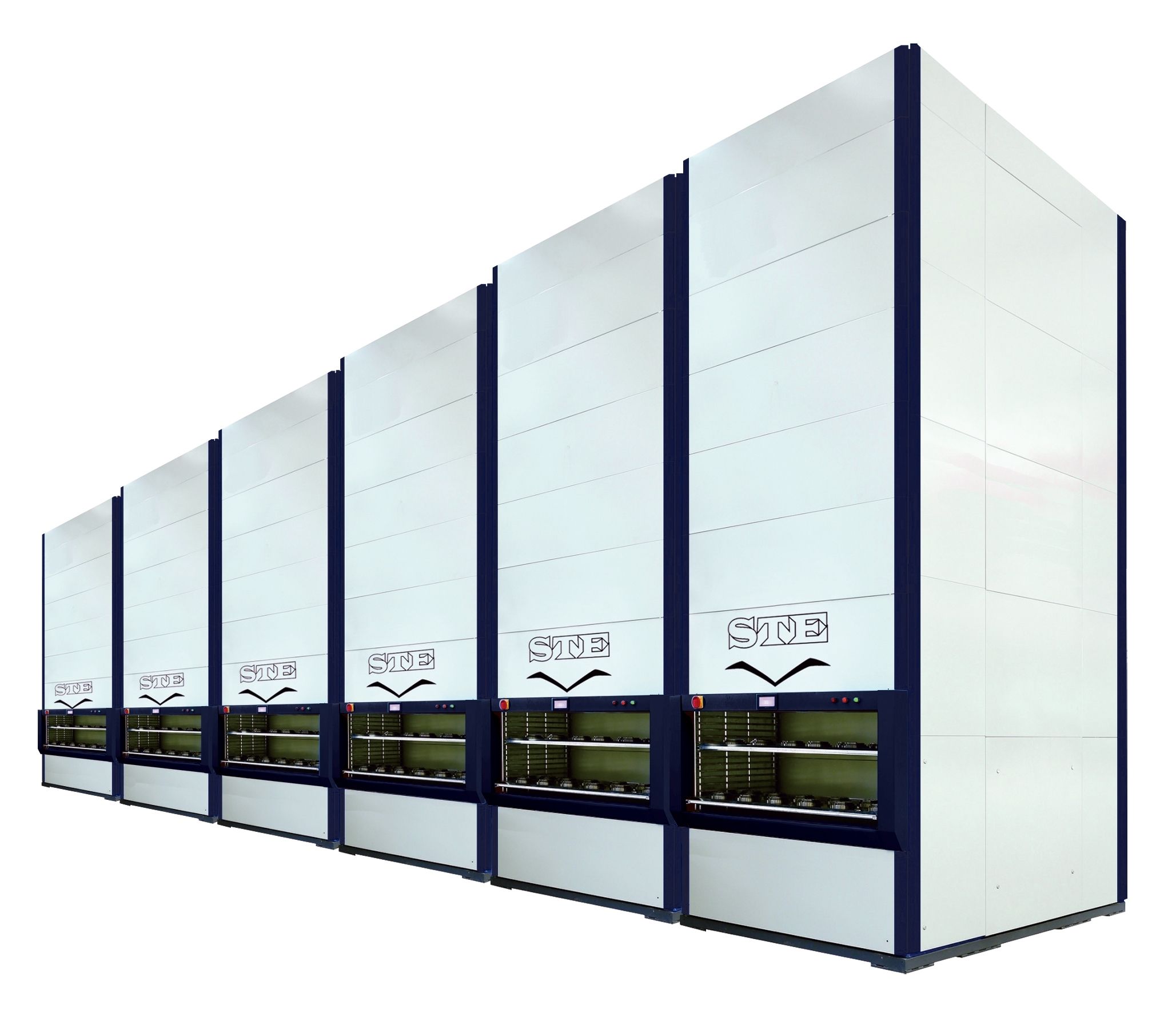

Vertical smart storage

Vertical smart storage equipment-automatic storage

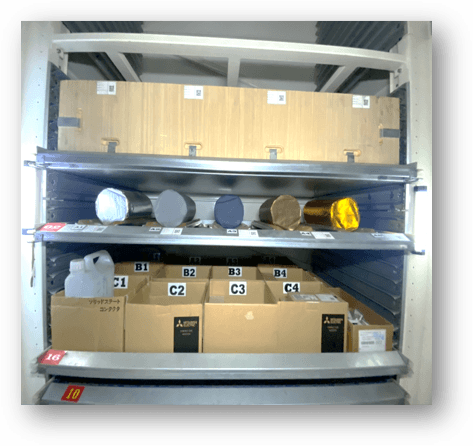

Smart storage equipment takes "pallets" as the storage unit, and takes out and transports the pallets that store goods into suitable storage locations through the lifting and horizontal movements of the central axis. This smart storage cabinet has a wide range of applications and can store all kinds of items, such as tools, knives, parts, spare parts and consumables, medicines, molds, and important documents.



Applicable to all walks of life, such as machinery, electronics, automobiles, logistics, food, publishing, medical, petrochemical, instrumentation, aviation... and other industries.



Product Introduction

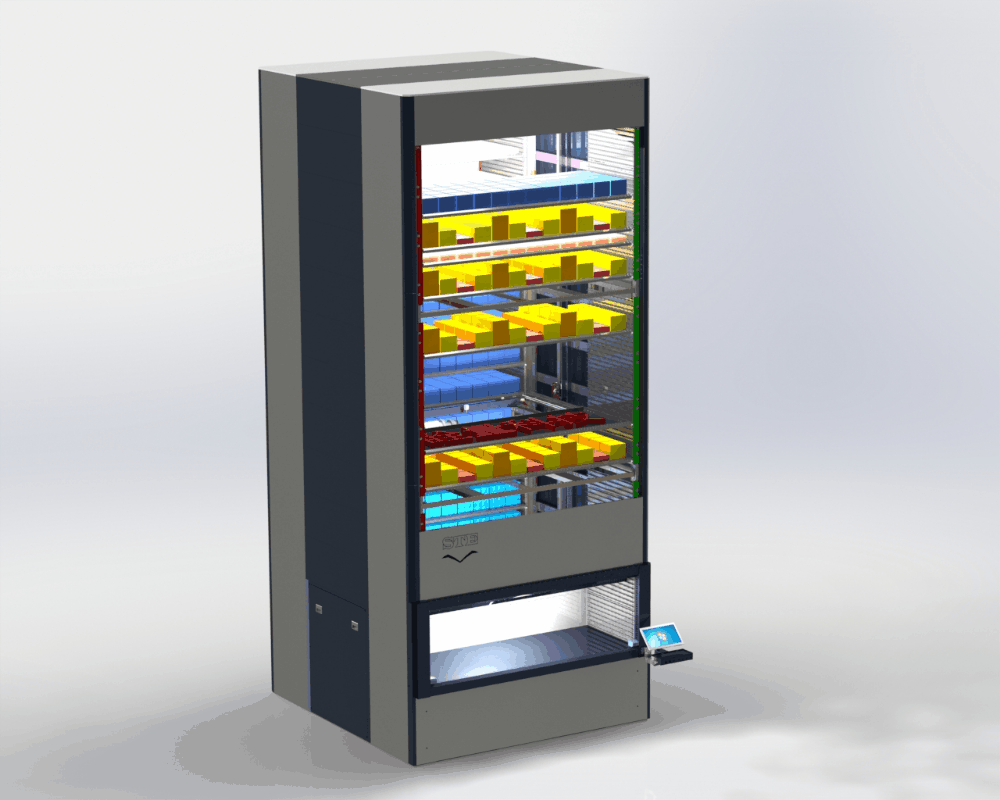

What is vertical automatic storage equipment?

The vertical smart storage system uses the tray as a storage unit, and the operation port is equipped with an automatic height measurement function, and the storage location is properly arranged to maximize the utilization of the internal space.



In addition, it can effectively save the warehouse space and maximize the benefits, making the warehouse management and efficiency more efficient.



Compared with traditional shelves, smart storage can use the existing height space when the floor area is the smallest, saving about 50% to 60% of the space.



The use of computer automated operation mode makes it convenient and quick to store and store items, achieving "goods to people", and alleviating the trouble of warehousing staff who spend time searching for goods.



In addition, a variety of protective detection sensors are installed to prevent damage to goods and equipment, and safety gates and shutters are also installed at the operation port to ensure the safety of operators.



The smart warehouse can store diverse items and can be widely used in industries such as displays, semiconductors, electronic parts, circuit board manufacturing, intelligent automated machinery, automobiles, logistics, food, publishing, biotechnology, and medical care.









Traditional storage equipment vs. smart storage equipment





Traditional storage



Smart storage equipment concept

Open shelf storage, requiring manual or stacker storage and retrieval of materials

New concept of "goods to people" access



problem:



Advantage:

The space cannot be fully utilized, the floor space is large, and the cost is wasted

Make full use of the height of the space and save the cost of the site

Time-consuming access process

Automatic access, save search time

Shelves have high and low levels, which consumes labor to store and store, and a stacker is required

Reduce labor and improve efficiency

Goods are easy to accumulate dust, moisture, and sunlight

Confined space to avoid dust exposure and protect the quality of materials

Difficult to manage access to materials by irrelevant personnel

Flexible setting of access permissions

Cannot manage inventory data instantly

Can be linked with ERP/MES, real-time and accurate

Difficult to implement materials first-in-first-out, tedious and time-consuming inventory

With first-in first-out function to avoid long-term storage of materials







Features of vertical storage equipment

Smart

_Pngtree_red_arrowhead_3534821-removebg-preview.png QR code scanning

 _Pngtree_red_arrowhead_3534821-removebg-preview.png Automatic height detection

 _Pngtree_red_arrowhead_3534821-removebg-preview.png Safe quantity setting/alarm

 _Pngtree_red_arrowhead_3534821-removebg-preview.png  Automatic location assignment, reduce wasted space

 _Pngtree_red_arrowhead_3534821-removebg-preview.png Goods position indicator function



Diversity

_Pngtree_red_arrowhead_3534821-removebg-preview.png  Can be used as material/production line/product warehouse

 _Pngtree_red_arrowhead_3534821-removebg-preview.png Can be connected to ERP/MES

_Pngtree_red_arrowhead_3534821-removebg-preview.png  Replaces freight elevators and can be stored and managed



   Efficient

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngSolve inconsistency between data and reality

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngGet instant inventory

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngInventory space increased by 4~6 times

_Pngtree_red_arrowhead_3534821-removebg-preview.pngSave more than 50% of floor space

_Pngtree_red_arrowhead_3534821-removebg-preview.pngReduce errors through EXCEL import/export



  Stability

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngSensor positioning

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngMultichain structure, stable and durable

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngPower and safety components use international brands



  Safety

_Pngtree_red_arrowhead_3534821-removebg-preview.png Automatic power off in abnormal situation

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngAutomatic detection of equipment status

_Pngtree_red_arrowhead_3534821-removebg-preview.png Import/export photoelectric protection

_Pngtree_red_arrowhead_3534821-removebg-preview.png Tool/Material Carrier Management

_Pngtree_red_arrowhead_3534821-removebg-preview.png Ergonomic design with protective device



  Modular

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngEquipment convenient to relocation

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngMultiple equipment size options

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngEfficient use of height space



  Technology

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngHistory tracking query

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngFlexibility to set access authorities of operators

 _Pngtree_red_arrowhead_3534821-removebg-preview.pngImportant data collection








Sensor positioning,

Protection upgrade



Tray separation,

Flexible configuration



Module configuration,

Multiple applications




Save space,

Improve efficiency



Barcode recognition,

Smart management



Multichain structure,

Stable and durable





Product Size




Product specifications




Environmental requirements


1.Ground flatness ±3mm

2.Operating ambient temperature -10°c~50°c

3.Operating ambient humidity <80%, no condensation

4.Ground load bearing requirements (as above)


Product equipment

Standard equipment

✔ Safety door

✔ Safety light curtain

✔ Height measuring

✔ In/out device port

✔ Detection laser

✔ PC

✔ Tray location detection



Optional equipment

✔ Tray

✔ Multiple input/output device ports

✔ LED display screen

✔ Antistatic bracelet

✔ Comfort vents

✔ Barcode printer

✔ Infrared indication

✔ Tray extension mechanism



System structure



Standard software

 Security procedures



Tray overweight return



Storage cell allocation



Jog control



Equipment action execution



Measure tray height



 System Communication (PLC←→WMS,MES,ERP)













Optional software

External Management System



 Connected multi machine system



Input/output device ports management



ERP, MES connection management system



WMS(Warehouse management system)



(1) . 1D/2D barcode management functions

(2) . EXCEL export and import functions

(3) . Access level management

(4) . Past data record query function

(5) . Inventory management function

(6) . Safety stock setting function

(7) . First in first out function

(8) . Automatically arrange cargo position function

(9) . Graphical management display function

(10). Goods position indication and display function
